UHF/VHF Sequencer Unit

The Sequencer is a fully integrated transmission management system purpose-built for UHF and VHF ground station operations. Designed for plug-and-play deployment, the Sequencer simplifies signal routing, amplification, and antenna switching—eliminating the complexity traditionally associated with high-frequency RF setups. Operating on standard 230V AC power with a maximum consumption of 500W, it delivers a compact, reliable, and pre-configured solution for rapid integration into satellite ground systems.

🛰️ Ideal Use Cases

  • Ground Stations with Expedite or CloudWave Modems
  • University Labs and Training Facilities
  • Quick-Deploy Ground Kits
  • Small Satellite Mission Operators
  • Expedite Modem

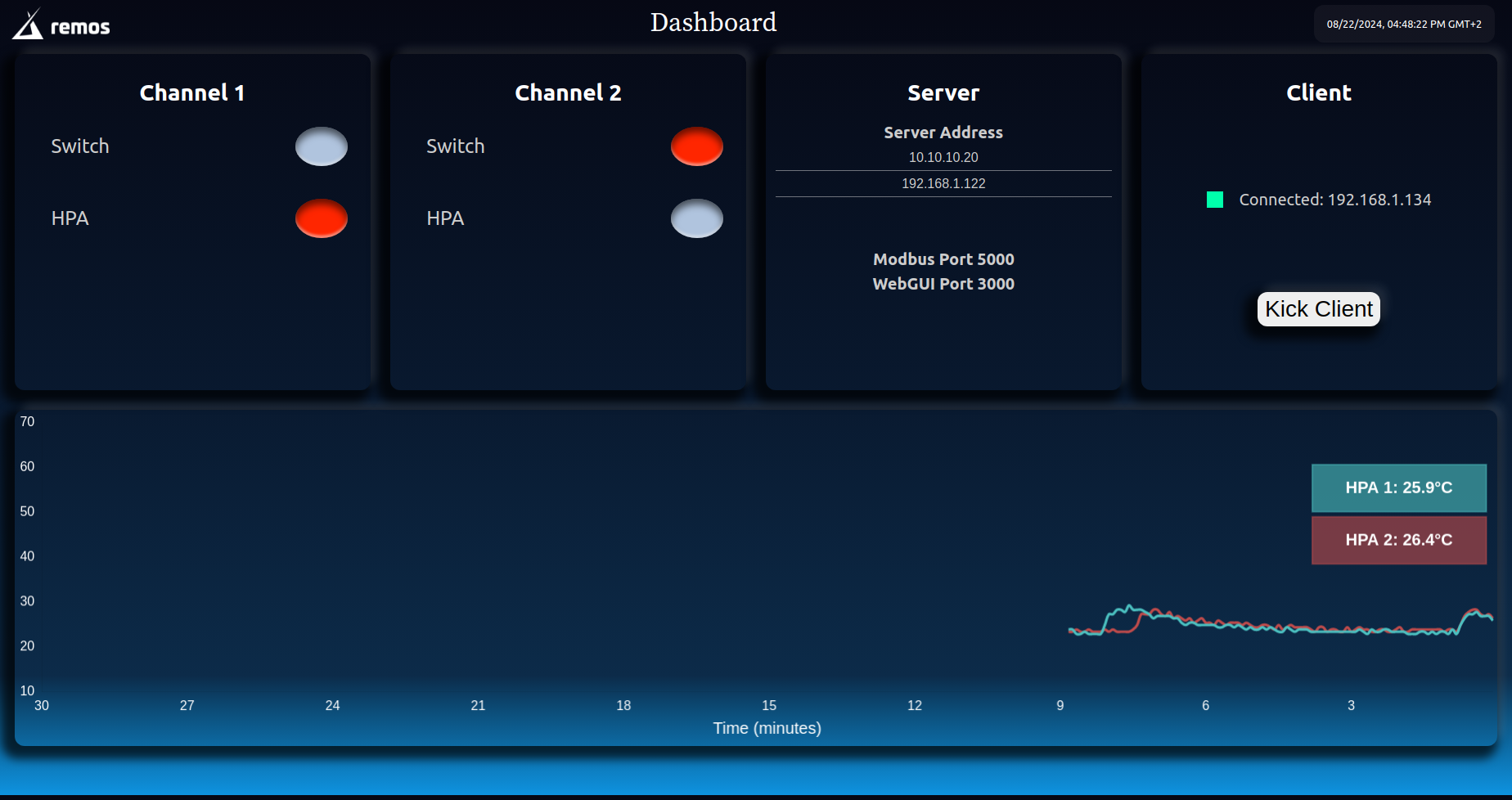

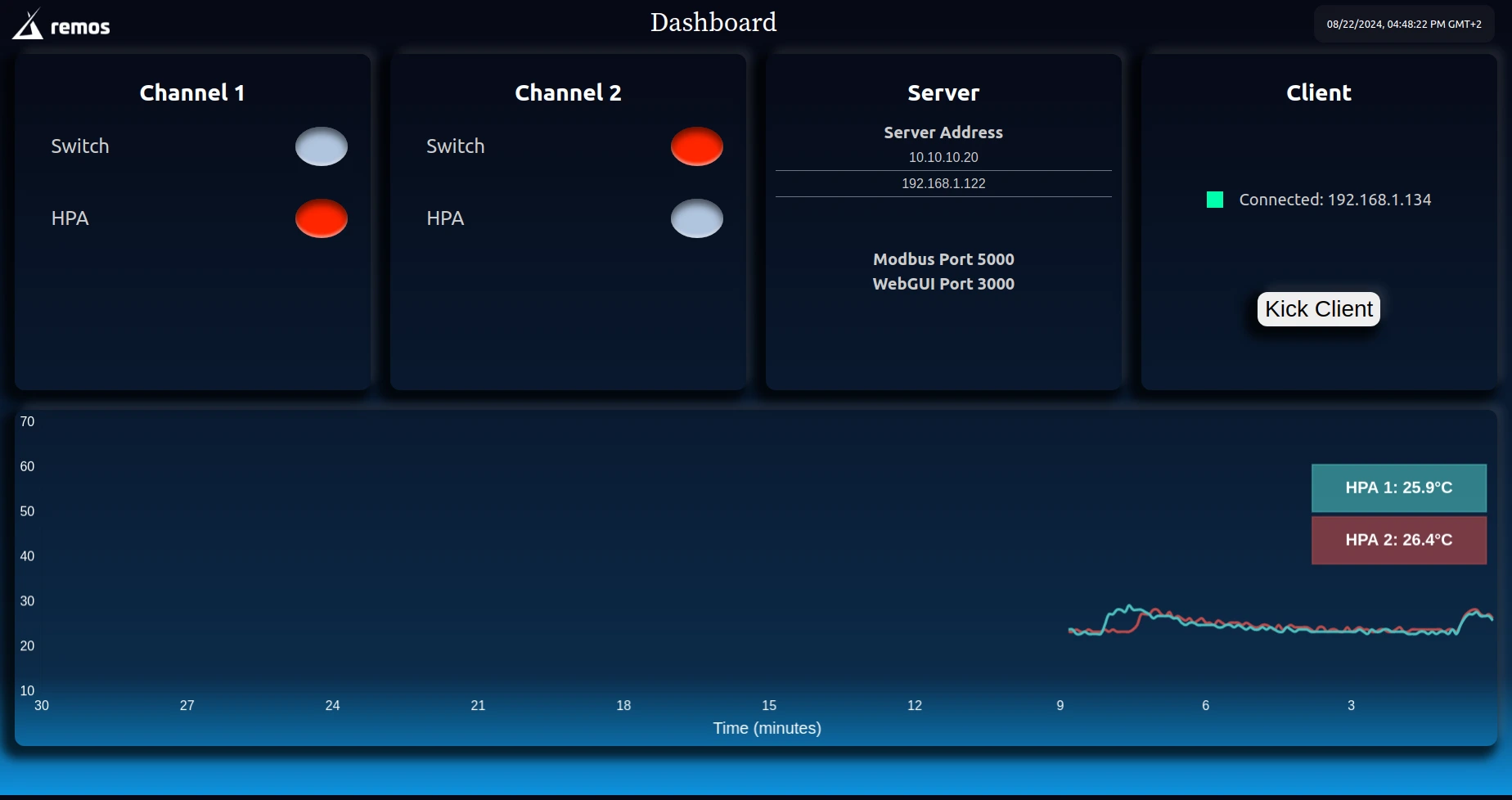

    Dashboard

  • Sequencer

    Front View

  • 3.7-Meter Antenna System

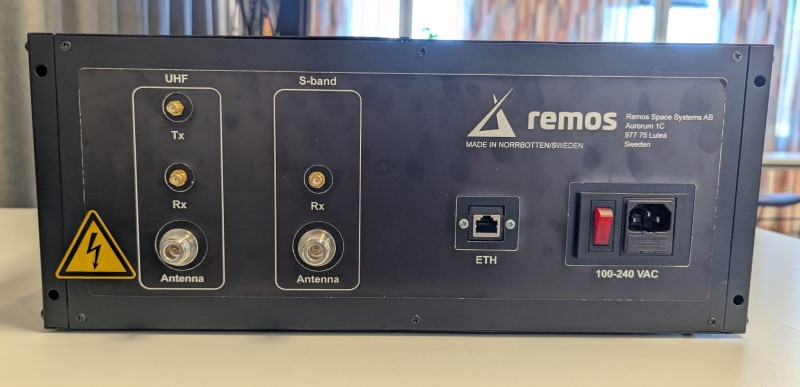

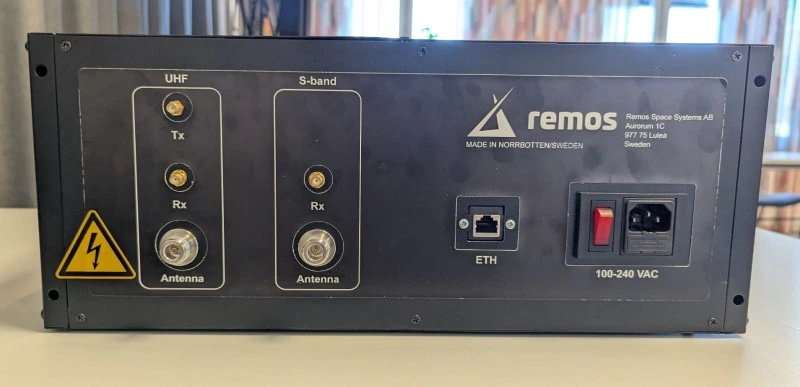

    Back View

  • 3.7-Meter Antenna System

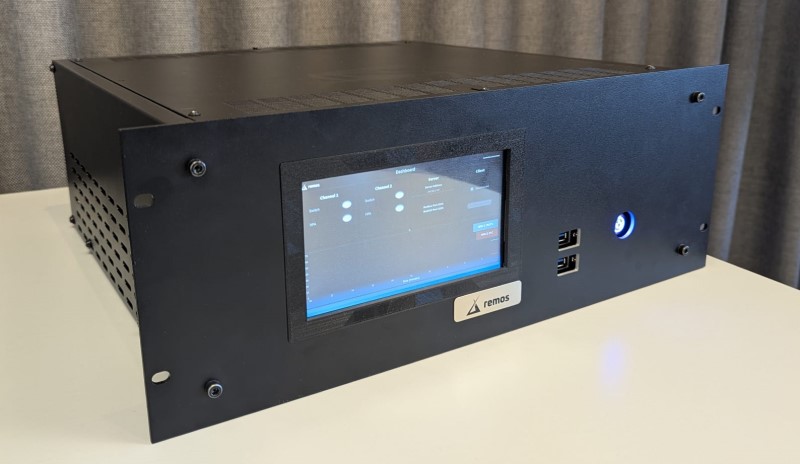

    Full View

🔧 Core Capabilities

  • Dual-Band Signal Handling: Seamlessly routes and amplifies transmission signals for UHF and VHF bands, ensuring clear and efficient uplinks.
  • High-Power Signal Amplification: Equipped with an integrated High-Power Amplifier (HPA) for clean, robust signal delivery to the antenna.
  • Smart SDR Routing: Accepts input from your Software-Defined Radio (SDR) and dynamically directs transmission to the appropriate band output.
  • Plug-and-Play Architecture: Fully pre-configured at the factory, requiring no user calibration or field setup—reducing time to deployment.

🌐 Key Features

  • Pre-Wired and Pre-Tested: Delivered ready to operate, with all internal connections configured and verified before shipment.
  • Simplified SDR Integration: Connects directly to the Tx output port of your SDR, with dedicated ports for UHF and VHF input/output, enabling seamless RF flow.
  • Optimized Signal Chain: Internal signal routing directs the SDR output to the HPA, then to the designated UHF or VHF output port for antenna transmission.
  • Compact and Reliable Power: Runs on 230V AC, with a low power footprint of ≤500W, suitable for both permanent installations and mobile setups.
RF Connection:

UHF Tx/Rx from Expedite to Enclosure: SMA Female

VHF Tx from Expedite to Enclosure: SMA Female

S-band Rx from Expedite to Enclosure: SMA Female

UHF/VHF/S-band Tx from Enclosure to Antenna: N-Type Female

S-band Polarization Switch: Manual

Mechanical and Environmental Specifications:

Chassis Size: 4U

Chassis Weight: 12KG

Chassis Dimensions: 482.6 x 177 x 425mm

Operating Temperature Range: 10 to 40°C

Storage Temperature Range: -20 to 70°C

Humidity: 10% to 90% non-condensing

Cooling: Forced air cooling with side-to-back airflow

Mounting: Standard 19-inch rack-mountable

Power Requirements:

Frequency: 50/60 Hz

Voltage: 110 - 240 V AC

Power Consumption: 200 W max at regular operations

Power Connector: IEC 60320 C14

Max Power Rating: Combined power of up to 300W

Interface and Connectivity:

Ethernet Ports: One realtek 2.5Gb Ethernet

USB Ports: 2 USB 3.2 (located in front)

Display Interface: Integrated Touchscreen LCD

Control Interface: SSH, REST API, Modbus

Software Features:
  • Sequencer: Sequencing of packets generated by Expedite Software Modem
  • IP Address: Displayed on the integrated touchscreen LCD
